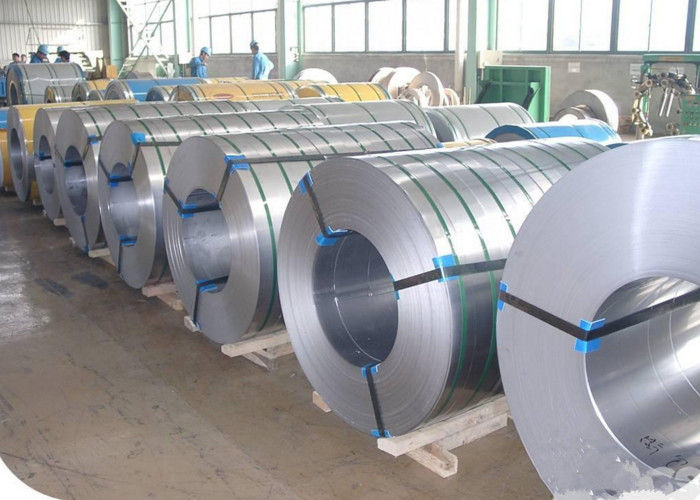

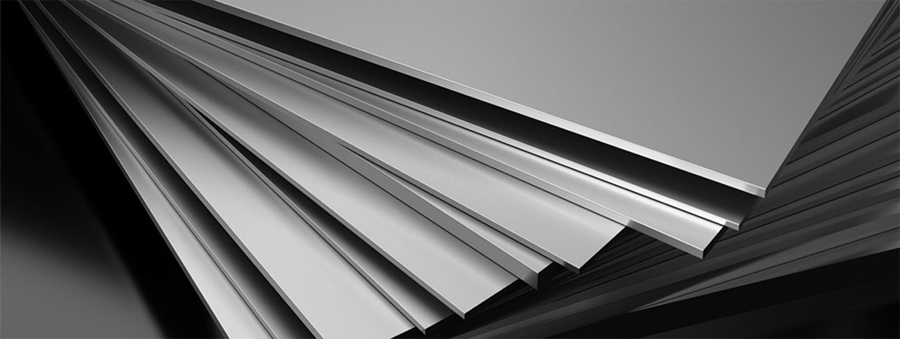

sheet, Plates & Coils

Sheets, Plates Coils

We offer wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry.
User Industries:
Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.

Range :
0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.

Stainless Steel :
ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430

Duplex Steel :
ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

Range :
3 mm to 100 mm thick in upto 2500 mm width upto 12500 mm length available with NACE MR 01-75s

Carbon Steel :
ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002

Alloy Steel :
ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.

Sheet and Plates Range :
5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.

Nickel Alloy :
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )

Sheet and Plates Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000

Form:
Hastelloy Sheet
Hastelloy Coil
Hastelloy Strips
Hastelloy Plates
Hastelloy Circle
Hastelloy Ring

Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750

Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

Sheet and Plates Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS

Type: Seamless / Erw / Welded/ Fabricated

Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751

This range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery

Sheet and Plates Grades : Monel 400, Monel k500

Type: Seamless / Erw / Welded/ Fabricated

Form: Round, Square, Rectangular, Hydraulic etc.

Length: Single Random, Double Random & Cut Length

End: Plain End, Beveled End, Threaded

The salient features are as follows :
Hot Dipped Galvanizing Epoxy & Fbe Coating Electro Polish Draw & Expansion

Sheet and Plates Specifications
1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm - 60mm
3)Length:6000mm
4)ASTM B265,ASTM 4911,F67,F136

Material :titanium and titanium alloys

Pure Titanium Grade : GR1, GR2, GR3, GR4

Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)

Specifications : tantalum sheet, tantalum plate, tantalum foil

Grade: RO5200, Ro5400,RO5252,RO5255

Standard :ASTM B708-98

Size:T0.1-10.0mm
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity : 99.95%min or 99.99%min conformity with ASTM B 708 98
Size:

Carbon & Alloy Steel Steel

RANGE 1 MM TO 200 MM THK IN 1000 MM TO 3000 MM WIDTH x 2500 MM / 5000 MM / 10000 MM / COIL. Carbon Steel ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002. Alloy Steel ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
